ULSA M5B

Next-Generation Compact Ultrasonic Anemometer for IoT

Compatible with M5Stack*, equipped with a high-performance 9-DoF sensor.

User programming allows for wind direction correction, touch panel operation, Wi-Fi, Bluetooth transmission, and large-capacity data logging!

*Not included. M5Stack is a registered trademark of Shenzhen Mingzhan Information Technology Co., Ltd.

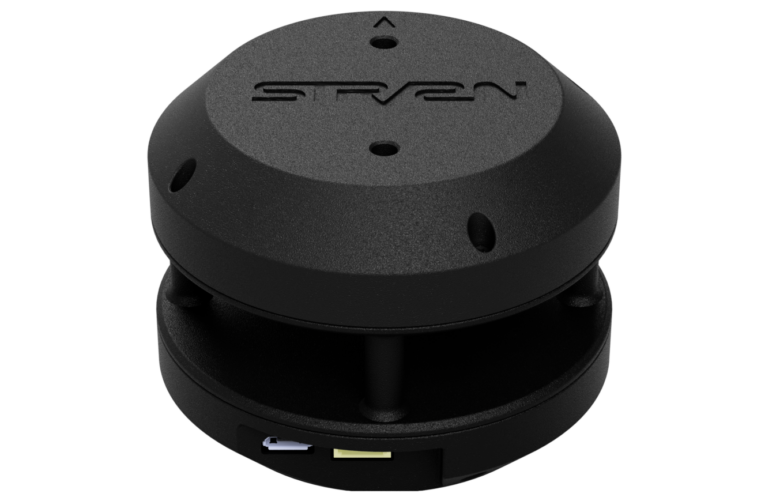

ULSA BASIC

Dive into the World of Ultrasonic Anemometers!

Born from high-altitude balloon development,

the industry's smallest and lightest class ultrasonic anemometer.

Development Story (Japanese article)


Compact


Diameter 75mm

Height 56mm(BASIC)

54mm(M5B)

lightweight


85 g (BASIC)

91 g (M5B)

HighRes


0.01 m/s

High Rate

10 Hz


Sampling

50 S/s


Various output

CSV

NMEA0183

List View

Appearance

Selling Store

I sell on Lectronz

Lectronz.com

Shipping globally through Lectronz.com!

I sell on Tindie

tindie.com

Shipping globally through tindie!

Specifications

ULSA M5B

ULSA BASIC


Mechanical Spec.

Diameter

Height


Housing

Material

Mass

Ingress

Protect

Mounting Hole

75 mm

54 mm

*Excluding M-BUS

terminal height

HP Multi-Jet

Fusion PA12

91 g

None


1/4-20 UNC

← SAME

56 mm





85g


Electrical Spec. * 1

Power

consum-

ption


Operati-

ng

Tempera-

ture


Signal Outputs


Bitrate

385 mW

*Excluding

M5Stack

0~60 ℃

*No Condensation

USB microB / JST ZH / M-BUS

4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps

385mW



USB microB / JST ZH



Measurement Spec. * 1

Measure-

ment

Items

Output

Rate




Output

Format

Resolut-

ion

Range

Precision

・Wind Speed

・Wind Direction

・Airspeed(Nose)

・Virtual

Temperature

・Sound Speed

1 / 2 / 5 / 10 Hz

※Rate selectable

only at

115200 bps

CSV / List View /

NMEA0183

Wind Velocity:

0.01 m/s

Wind Direction:

1 °

Virtual

Temperature:

0.01 ℃

Wind Velocity:

0~20 m/s

Wind Direction:

0~359 °

Wind Velocity:

±5 %rdg.

Wind Direction:

±1 °

Virtual Temperature:±2 ℃ (*2)








*1 - Specifications are subject to change without notice.

*2 - It is a virtual temperature derived from the speed of sound, and due to the influence of factors such as air pressure and humidity, it differs from the actual temperature.

ULSA Startup Guide

For information on the minimum setup required for the measurement Please click here.

Technical Documentation

The technical specifications of ULSA, as well as precautions for use, are documented.

ULSA 3D model

You can download the 3D reference model of ULSA for external dimensions.

This allows you to import it into CAD or visualize the size using AR.


Distribution Format:

STEP / STL / USDZ

Demo for M5Stack

This is the installation procedure for the M5Stack Core2 anemometer demo firmware that docks with ULSA M5B.

You can quickly test the anemometer function.

Firmware for ULSA

We provide firmware updates for ULSA BASIC / M5B to improve functionality and fix bugs.

Blog Articles

'}}
Introducing the Ultrasonic Anemometer ‘ULSA PRO’
'}}
Joint Exhibition at JAPAN DRONE 2024 @ Makuhari Messe
'}}
AEROVISION’s first exhibition at GUGEN2023 @ Akihabara Convention Hall
'}}
[News Release] Joint Development with Japan Wind Tunnel Manufacturing Co., Ltd. on Ultrasonic Anemometers
'}}
Real-Time Airflow Visualization System AEROVISION Unveiled
'}}
ULSA Ultrasonic Anemometer Achieves 100 Units Shipped in Its First Year
'}}
ULSA BASICにM5Stackをつなぐ
'}}
つながるULSA – Arduino IoT Cloud(後編)
'}}
つながるULSA – Arduino IoT Cloud(前編)
'}}
(売り切れ)【アウトレット出品】 ULSA BASICを10%OFFで販売
'}}
3/10(日)未踏会議2024に出展します
'}}
2/3 (土)~4 (日) YOXO FESTIVALに出展します

Inquiries & FAQ

For inquiries about ULSA or initial defects, please contact us using the form below.


After receiving the product, we only accept exchanges for initially defective items. Please make a claim within 14 days of receipt.


*Response is typically provided within 5 business days

What is ULSA?

ULSA is an acronym derived from the UltraSonic Anemometer, an ultrasonic wind direction and speed meter.

ULSA is a technology born during the research and development of gliding recovery balloons in STRATOVISION. By purchasing ULSA, STRATOVISION can continue its journey towards the development of new balloon technologies.

Can it be used outdoors?

ULSA M5B / BASIC is not waterproof. Please use it indoors or temporarily outdoors under clear weather conditions (avoid using it in outdoor applications during rainy weather).

Examples: drone mounting, indoor airflow measurement, etc.


How do I install it?

There is a 1/4-20 UNC screw on the bottom surface. You can mount and install it using your camera tripod.
